This feature is available only in Akeeba Backup Professional
It's very likely that advanced site owners will place files outside the site's root to prevent web visitors from having direct access to those files. These directories typically contain files that need complex access control and are, therefore, only made available for download through PHP code, e.g. a download manager extension for Joomla!. Akeeba Backup Core will only backup files under the site's root, which would make these files impossible to backup.
The solution to that problem is the Off-site Directories Inclusion feature of Akeeba Backup Professional. Using this feature you can tell Akeeba Backup to look for files in arbitrary locations outside the site's root and include them in the backup archive. All the directories included with this filter will be placed in the archive as subdirectories of another folder, in order to avoid directory name clashes. We call this parent folder the "virtual folder".
For example, let's say you want to backup an off-site
images. If we weren't using the
virtual folder its contents would end up being backed up inside the
images directory. This is not
desirable. If your virtual folder is called
my_offsite_includes , this directory would end
up being backed up as something like
my_offsite_includes/123ABC-images . Notice the
stuff and the dash before the actual directory name? This is a smart
feature which allows you to backup many directories that have the
same name. You could, for instance, backup two directories named
images , confident that there would be no name
clash inside the archive.
Since keeping track of these folders is a pain,
Akeeba Backup includes a
readme.txt text file inside the virtual folder
which tells you which backed up folder corresponds to which physical
folder, making it easy for you to restore these directories to their
Moreover, ANGIE -the restoration script included in the Akeeba Backup archives- can semi-automatically restore the off-site directories to their original location. You will need to confirm the destination directory or, if you don't want to do this, just tell it to skip over that directory.
You MUST NOT add your site's root as an off-site directory inclusion. Akeeba Backup already adds the contents of your site's root to the backup. If you manually add your site's main directory as an off-site directory inclusion you will be backing up the same files twice, doubling your backup size. For the same reason you must not add an folder already under the site's root as an off-site directory inclusion: you'd be backing up files already backed up, bloating the backup size.
Finally note that if your backup output directory is somewhere under your site's root (this is the case with the default backup output directory) and you add your site's root as an off-site directory using this feature your backup will fail. That's because Akeeba Backup won't know that your backup output directory is under the off-side directory you included, therefore it will try to back up the output folder. This will try adding the backup archive it's writing to into itself which will cause all sorts of problems and ultimately a backup failure.

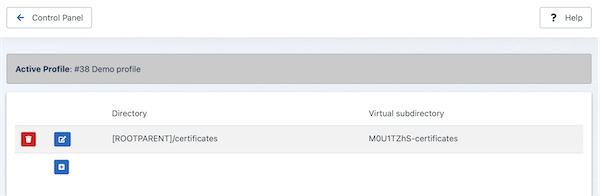

Off-site Directories Inclusion
At first you are presented with a grid view, listing all the off-site inclusions you may have already added. Next to each row and on the left hand side of it you will find two icons:
The trashcan (red background). Clicking on this icon will remove the current directory definition from the backup set.
Pencil or Add (blue background). Both will toggle the row to edit mode: the former to edit the directory definition, the latter to create a new one.

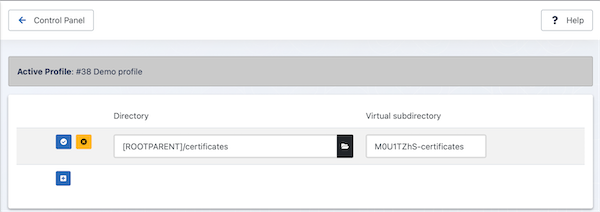

Off-site Directories Inclusion - Edit mode
When a row enters the edit mode, the pencil icon changes to two different icons:
The checkmark (blue background). Clicking on this icon will save any changes you have made.
Cancel (yellow background). Clicking it will abort any changes you have made.
You will also observe that the path to the external directory has also turned to an edit box with a folder icon on its left. You can type in the absolute path to the external directory using the edit box, or click on the folder icon to launch a visual folder browser, much like the one you use to select an output directory in the component's Configuration page. If you choose to use the edit box, you can use the following variables:
[SITEROOT] is the absolute path to your site's root. You should never use this for the reasons explained earlier in this section.
[ROOTPARENT] is the absolute path to your site root's parent directory, i.e. one level above your site's root.
To the right of the directory you will see another field called Virtual Directory. This is the name of the subdirectory where Akeeba Backup stores the files and folders of these off-site directory's files. Normally, the subdirectory is placed inside the virtual directory for external files, as defined in your backup profile's configuration. If you do not enter a directory name Akeeba Backup will use a predetermined name. This name is a random value followed by a dash and the name of the off-site directory you are defining.
Sometimes you want to include off-site files directly inside
the archive's root. Two very useful cases are overriding your
regular configuration.php file with another one –presumably one
tuned for use on your dev site– as well as overriding files in the
installation directory, for example in order to customise the
appearance of the installer. In those cases you don't want the
off-site files to be included inside the virtual directory for
off-site files. This is very easy to accomplish. Just set the
Virtual Directory to a single forward slash (it's this character:
/) and Akeeba Backup will copy the off-site files
inside the archive's root.
